It is perfect for high-quality engraving on a variety of metal surfaces. In addition, it is suitable for image application onto engineering plastics, granite, rubber, leather goods, plywood, etc.
| Laser type | Ytterbium fiber |
| Laser source power | 30, 50, 60 W |
| Engraving area dimensions | 100х100; 200х200; 300х300 mm |
| Labeling speed | up to 10 000 mm/sec |

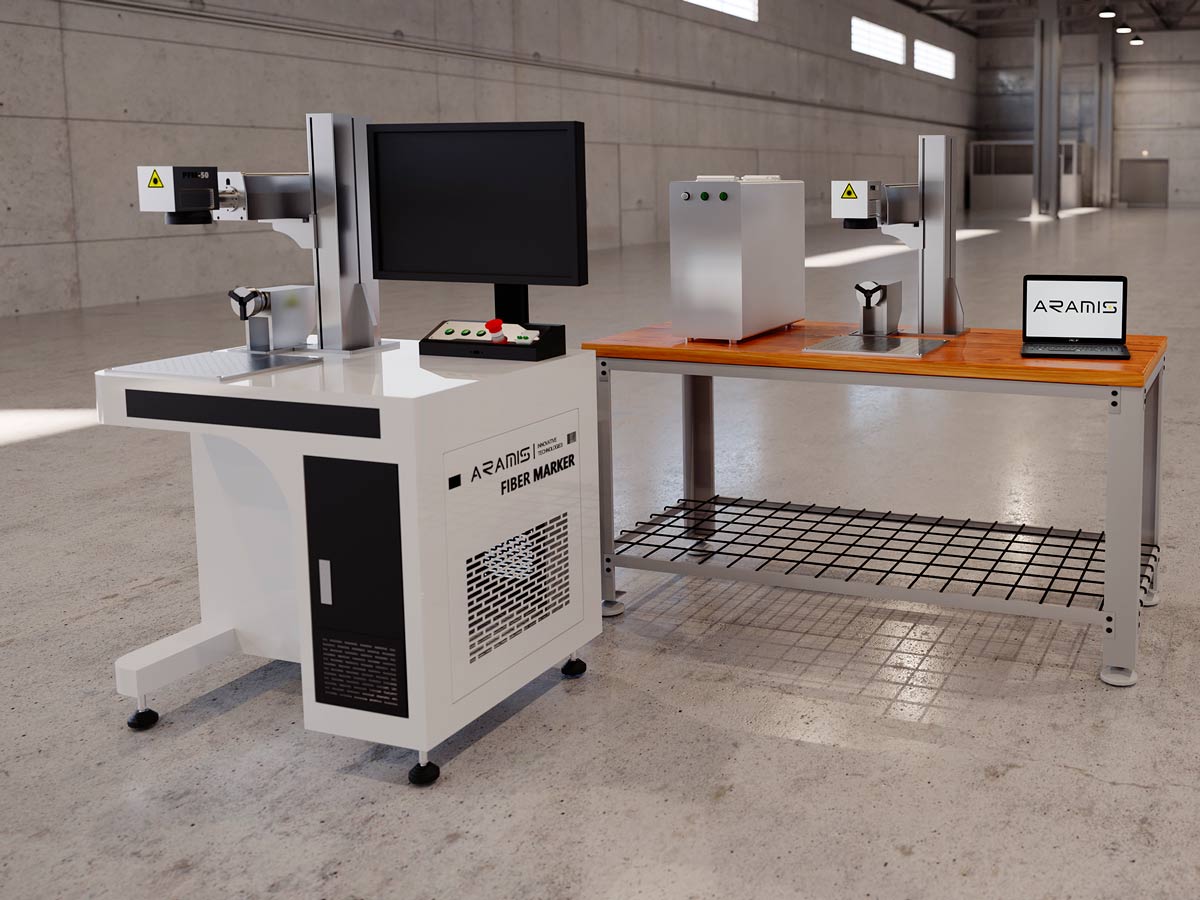

- The mobile engraver is a full-fledged ready-to-operate workstation that can be easily transported to any location on its wheels.
- To perform engraving and marking functions, the machine is equipped with an ytterbium fiber laser source and an electroplating scanner with a various engraving field.
- The pulse repetition frequency and pulse duration can be varied within a wide range, which ensures selection of the necessary modes and high quality of processing.
- Compact air-cooled laser source.
- High-speed engraving with high precision.
- Professional control panel and laser marking software.
- The software management system has a Windows interface and contains files, which are output by software such as Coreldraw, AutoCAD, Photoshop, etc.
- Supports various file formats such as PLT, DXF, PCX, BMP
| Type of laser source | Ytterbium fiber laser |
| Beam delivery | optic fiber |
| Laser source power | 30, 50, 60 W |
| Laser wavelength | 1064 nm |
| Cooling system | stand-by, air-cooled |
| Working area of marking | 100х100; 200х200; 300х300 mm |
| Marking speed | up to 10 000 mm/sec |
| Maximum depth of marking | up to 0,5 mm |
| Minimum symbols | 0,15 mm |
| Minimum width of the line | 0,01 mm |
| Resolution factor | 0,01 mm |
| Materials that can be marked | Metals (steel, aluminum, brass, titanium, painted/anodized surfaces), semiconductors, foil, plastics, polycarbonates, leather, stone, rubber |
| Consumption power, not more than | 500 W |
| Cooling | air-cooled |
| Automated trunnion axis | + |
| Safety glasses | + |
| Supported software | TAJIMA, CorelDraw, Photoshop, AutoCAD |
| Supported graphics format | BMP, PLT, DST, DXF, PCX, Al and others |
The delivery set of the laser mobile marker includes:
- Mobile stand with work table – universal workplace;
- Raycus laser source with cooling system;
- Sino-Galvo lens with processing area size 100×100, 200×200 and 300×300 mm;
- PC with monitor for control and image processing;
- EzCAD software;
- Technical documentation.
- The machine is made in УХЛ (UHL: working in laboratory, capital residential premises) climatic version of placement category 4.2 in accordance with State Standard GOST 15150-69 and is designed for operation at the air temperature in the working room +10º-32ºС, relative humidity 80% (at the temperature of 20ºС) and atmospheric pressure 6-6. 800 mmHg).
- Operating conditions in terms of mechanical factors of external environment impact should correspond to group M1 of State Standard GOST 17516-72. There should be no increased vibration source closer than 20m to the machine.
- The machine is powered by industrial electric network 220V with permissible deviation ±10%, frequency 50 ±1Hz with permissible electric power consumption up to 1.0 kW. Inter-phase balance is not more than +2%. Electric power quality parameters in accordance with State Standard GOST 13109-97.
