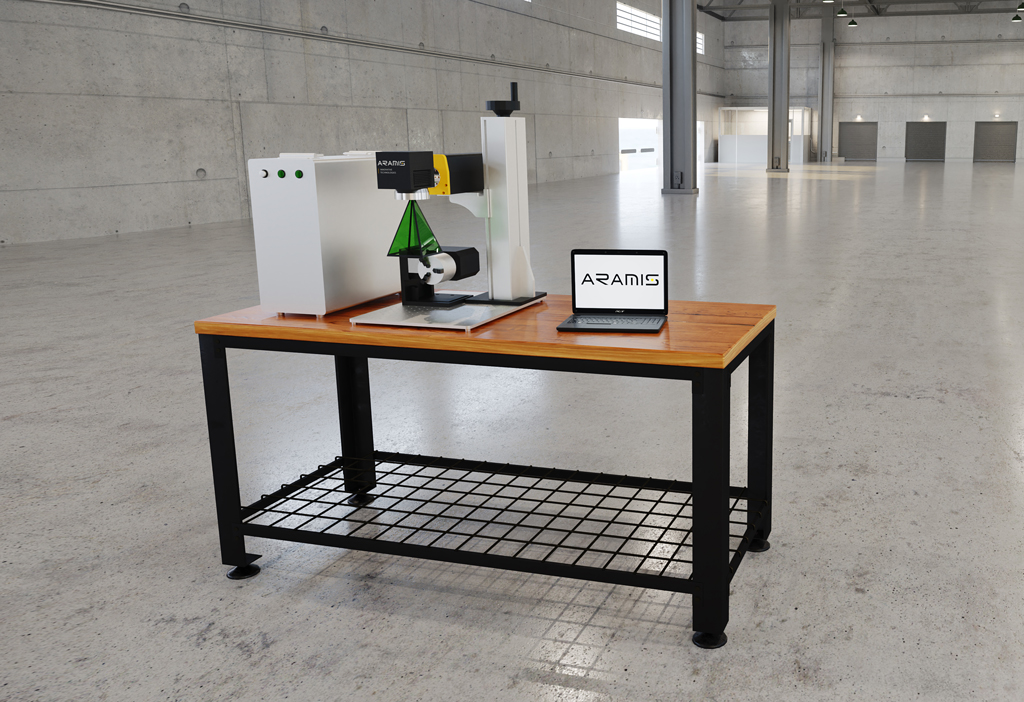

ARAMIS DFM laser marker is a compact desktop system for engraving and marking. It is equipped with a fiber laser source and Galvano scanner with variable sized engraving working field, which provides high marking precision combined with high speed.
Specifications
| Laser type | Ytterbium fiber laser |
| Laser source power | 30, 50, 60 W |
| Marking/Engraving area | 100х100; 200х200 mm |
| Marking/Engraving speed | up to 10 000 mm/sec |
Share:
Description
- The desktop engraver is small and easy to transport to any desired location.
- To perform engraving and marking functions, the machine is equipped with an ytterbium fiber laser source and a Galvano scanner with a variable-size engraving field.
- The pulse repetition frequency and pulse duration can be varied within a wide range, which ensures selection of the required modes and high quality of processing.
- Compact air-cooled laser source.
- High-speed labeling/engraving with high precision.
- Professional control panel and labeling/engraving software.
- The software management system has a Windows interface and contains files, which are output by software such as Coreldraw, AutoCAD, Photoshop, etc.
- Support of various file formats such as PLT, DXF, PCX, BMP
Performance parameters
Laser source
| Type of laser source | Ytterbium fiber |
| Beam delivery | optic fiber |
| Laser source power | 30, 50, 60 W |
| Laser wavelength | 1064 nm |
| Cooling system | air-cooled, stand-by |
Marking parameters
| Working area for marking | 100х100; 200х200 mm |
| Marking speed | up to 10 000 mm/sec |
| Maximum depth of marking | up to 0.5 mm |
| Minimum size of symbols | 0.15 mm |
| Minimum width of the line | 0.01 mm |
| Resolution factor | 0.01 mm |
| Materials that can be marked | Metals (steel, aluminum, brass, titanium, painted/anodized surfaces), semiconductors, foil, plastics, polycarbonates, leather, stone, rubber |
General parameters
| Consumption power, not more than | 500 W |
| Cooling | air-cooled |
Additional options
| Automated trunnion axes | + |
| Safety glasses | + |
Software
| Supported software | TAJIMA, CorelDraw, Photoshop, AutoCAD |
| Supported graphic format | BMP, PLT, DST, DXF, PCX, Al and others |
Operating conditions
- The machine is made in УХЛ (UHL: working in laboratory, capital residential premises) climatic version of placement category 4.2 in accordance with State Standard GOST 15150-69 and is designed for operation at the air temperature in the working room +10º-32ºС, relative humidity 80% (at the temperature of 20ºС) and atmospheric pressure 6-6. 800 mmHg).
- Operating conditions in terms of mechanical factors of external environment impact should correspond to group M1 of State Standard GOST 17516-72. There should be no increased vibration source closer than 20m to the machine.
- The machine is powered by industrial electric network 220V with permissible deviation ±10%, frequency 50 ±1Hz with permissible electric power consumption up to 1.0 kW. Inter-phase balance is not more than +2%. Electric power quality parameters in accordance with State Standard GOST 13109-97.
